Getting screw-pile depth right isn’t a “nice to have”,it’s fundamental to capacity, serviceability, and cost control. For screw piles (especially multiturn helix designs), “correct depth” means advancing to the target bearing stratum and achieving the required installation torque that correlates with design capacity. Stop short and the helix hasn’t fully engaged competent ground; go too far and you risk over-torque, damage, or simply paying for unnecessary pile length that doesn’t improve performance. This article explains how depth errors show up on screw-pile projects, why they matter, and how MCLM prevents them.

What the “correct depth” means for screw piles:

Screw piles carry load primarily through the helix bearing on competent soil (and, with multiturn helixes, through a compacted pressure-bulb of soil around the helix). The design specifies a target torque and embedment in a specific layer. When you reach that layer and hit the torque window, you’ve matched the geotechnical model and design assumptions—capacity, settlement, and uplift resistance line up with what the engineer signed off.

If piles are too shallow:

• Under-capacity: The helix hasn’t seated in competent soil; measured torque is low, so compression and uplift capacities fall short.

• Excess settlement or uplift movement: Inadequate end-bearing leads to vertical movement under service loads.
• Poor lateral stiffness: Shallow embedment reduces lateral resistance at headworks and frames.
• QA non-conformance: Torque/depth logs won’t meet the hold-point requirements; piles may need to be extended or reinstalled—adding time and cost.

If piles are too deep:

• Over-torque and damage risk: Driving beyond the target layer can spike torque, risking helix distortion, shaft torsional yield, or coupler stress.

• Misaligned load-transfer zone: Passing the intended stratum can push the helix into transitional or unsuitable material, reducing the predictable link between torque and capacity.
• Unnecessary cost/time: Extra steel, extra turns, and more machine hours without meaningful capacity gain.
• Set-out & level complications: Incorrect cut-off levels create issues for caps, baseplates and slab RLs—leading to packing, rework, or redesign.

Why incorrect depth happens on screw-pile jobs:

• Variable ground not captured by desktop data (fill lenses, boulders, weathered rock, soft seams).
• Gaps in investigation (limited boreholes, no DCP on critical lines).
• Calibration issues (torque sensor drift, incorrect tool factors) or operator error (crowd/rotation habits, reading logs).
• Obstructions that cause false refusal or deflection off line.
• Rushing the hold points—installing to a depth number instead of the torque window.

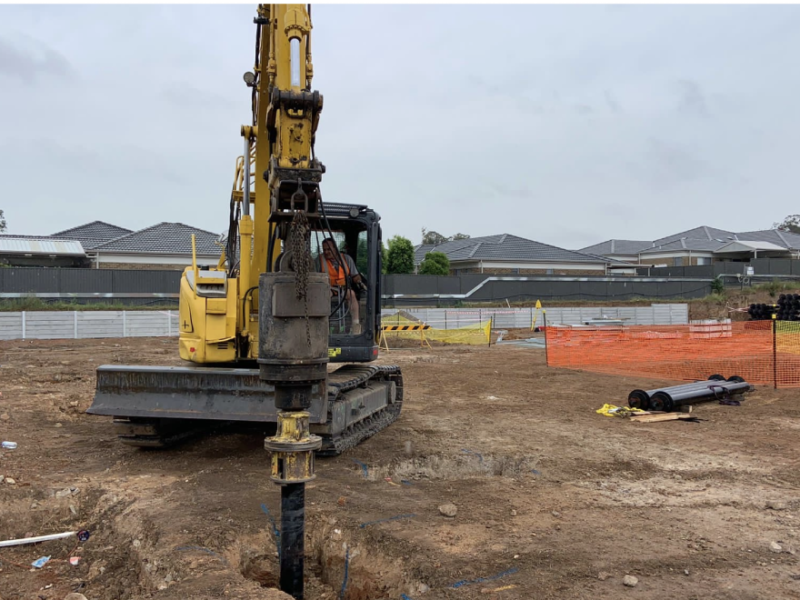

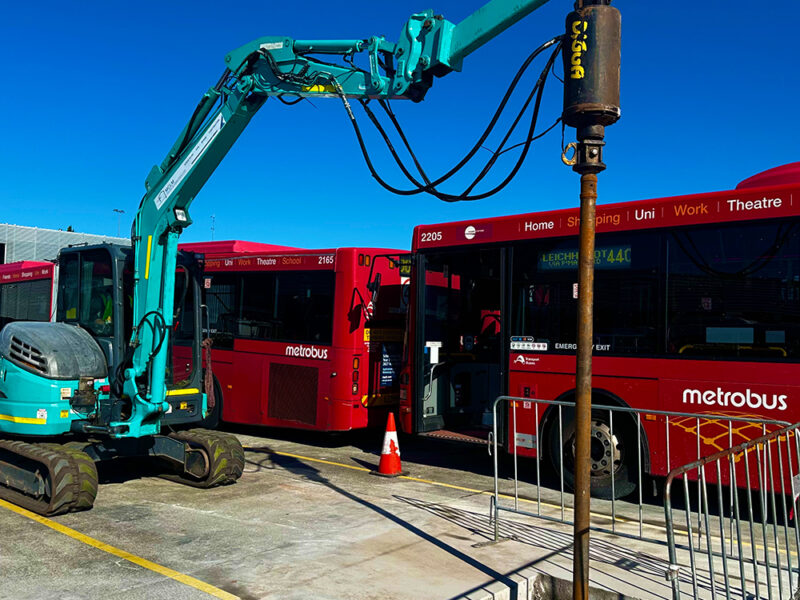

How we control depth at MCLM:

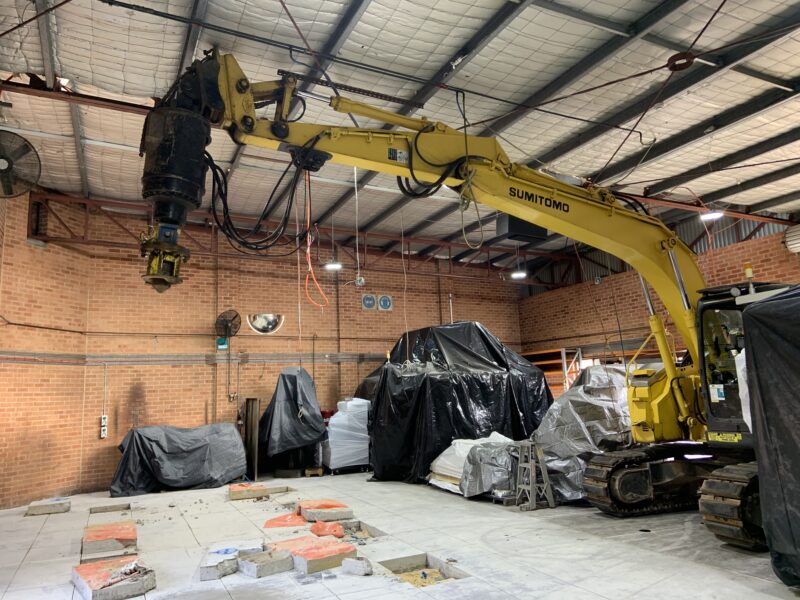

Depth isn’t a number you “pick”—it’s where design torque is achieved in the right layer. In sands and stiff clays, our multiturn helix compacts soil to form a pressure bulb, delivering high end-bearing at relatively shallow embedment. In heterogeneous fill, shaly horizons or boulder fields, we plan for test piling, potential pre-drill in localised zones, or change-out of tooling to ensure the helix seats correctly without damage.

DCP testing (pre-install): We map penetration resistance across key lines to anticipate founding depth and confirm strata changes.

Test piling: We mobilise with couplings and extensions, install a trial pile to refusal/torque window, and produce torque-depth curves that set realistic production lengths.

Real-time torque & depth logging: Every pile is recorded and checked against the design envelope and hold-points.

Static load testing (as required): Compression and uplift tests verify the capacity model on representative piles.

Strict tolerances: Verticality, embedment, torque window, and cut-off levels are controlled and documented; non-conformances trigger immediate corrective actions (e.g., extensions).

Engineer certification & QA pack: As-builts, torque/depth logs, ITPs and sign-offs provide traceability and assurance.

Telltale signs a screw pile isn’t at the right depth

During install: Torque fails to rise as expected; sudden refusal at low torque; excessive turns without reaching the window.

After install: Unexpected settlement, uplift “slack,” or lateral softness; proof tests that don’t meet criteria; head levels out of tolerance.
